Genome-wide SNP and InDel analysis of three Philippine mango species inferred from whole-genome sequencing

Abstract

Background

The Philippines is among the top 10 major exporters of mango worldwide. However, genomic studies of Philippine mangoes remain largely unexplored and lacking. Here, we sequenced the whole genome of the three Philippine mango species, namely, Mangifera odorata (Huani), Mangifera altissima (Paho), and Mangifera indica “Carabao” variety using Illumina HiSeq 2500, to identify and analyze their genome-wide variants (SNPs and InDels).

Results

The high confidence variants were identified by successfully mapping 93–95% of the quality-filtered reads to the Alphonso and Tommy Atkins mango reference genomes. Using these two currently available mango genomes, most variants were observed in M. odorata (4,353,063 and 4,277,287), followed by M. altissima (3,392,763 and 3,449,917), and lastly, M. indica Carabao (2,755,267 and 2,852,480). Approximately 50, 46, and 38% of the variants were unique in the three Philippine mango genomes. The analysis of variant effects and functional annotation across the three mango species revealed 56,982 variants with high-impact effects mapped onto 37,746 genes, of which 25% were found to be novel. The affected mango genes include those with potential economic importance such as 6945 genes for defense/resistance/immune response, 323 genes for fruit development, and 338 genes for anthocyanin production.

Conclusions

To date, this is the first sequencing effort to comprehensively analyze genome-wide variants essential for the development of genome-wide markers specific to these mango species native to the Philippines. This study provides an important genomic resource that can be used for the genetic improvement of mangoes.

Background

The Philippines is among the top 10 major exporters of fresh and dried mangoes in the world. The country’s mango export is valued at USD 91 million and contributes a 4% share of the global market [1, 2]. The mango industry also supports about 2.5 M Filipino farmers [3]. In the first quarter of 2021, 97.9 thousand Mt of mangoes were produced in the Philippines and around 83% of which came from the Carabao mango variety (Mangifera indica) [4]. The Carabao mango is the Philippines’ export variety which is known as one of the world’s finest, superior quality, and sweetest mango varieties. Hence, Carabao is the country’s flagship variety in the mango global value chain.

Mango belongs to the kingdom Plantae, order Sapindales, family Anacardiaceae (cashew family), subfamily Anacardioideae, and genus Mangifera. Mangifera indica, the common mango, is a juicy drupe that is usually found in tropical countries. It has varying sweetness and texture across cultivars and has a high incidence of hybridization with other members of its genus. This results in new varieties or species such as Mangifera odorata (M. indica x M. foetida) which is commonly known as Huani in the Philippines [5]. Huani is also known for its characteristic pungent smell and taste of turpentine. Another native species of mango in the country is Mangifera altissima which is locally known as Paho. Its unripe fruits are small and oftentimes used in salads in the Philippines.

Mango has a diploid chromosome (n=20 chromosomes), and its haploid genome size is relatively small (approximately 400 Mb) but complex due to its innate heterozygosity [6, 7]. The mango seed exhibits apomixis and can produce one seedling (monoembryony) or multiple seedlings (polyembryony) in one seed. The former is common in varieties originating from India and mainland China [8] while the latter is observed in varieties that evolved in places closer to the equator such as the Philippines [9]. The complex (heterozygous) genome and polyembryonic nature of mango in the Philippines pose a significant challenge in genomics and plant breeding studies. Hence, despite the agricultural and economical importance of mango in the country, the genomic studies of Philippine mangoes remain lacking and largely unexplored.

Recently, the chromosome-level whole-genome sequencing (WGS) of Alphonso [7] and Tommy Atkins [6] was completed, providing high-quality reference genomes for mango. Both varieties are of the same species (M. indica) and are important varieties in the mango international trade. With the availability of WGS data, in-depth genome analysis can be performed to unravel gene networks, reveal intron-exon boundaries, detect transposable elements, discover novel biological processes, develop molecular markers tagging economically important traits for breeding (e.g., insect pest and disease resistance), and identify genome-wide variants such as single-nucleotide polymorphisms (SNPs) and insertions-deletions (InDels) [10,11,12,13,14]. SNPs and InDels are differences and variations in the genome which can have a huge impact on the biological and physical traits of an organism.

In this study, we sequenced the whole genomes of three Philippine mango species, namely, Mangifera odorata (Huani), Mangifera altissima (Paho), and Mangifera indica ‘Carabao’ using Illumina HiSeq, to identify and characterize their genome-wide variants (SNPs and InDels). The high confidence variants were identified by successfully mapping the quality-filtered reads to the Alphonso and Tommy Atkins mango reference genomes. This study provides valuable information and resources for mango breeding and genetic studies.

Methods

Mango species used and DNA extraction

Three mango species native to the Philippines were used in this study, namely, Mangifera indica Carabao, Mangifera odorata (Huani), and Mangifera altissima (Paho). A high-quality DNA was extracted from three mango trees of the same species using the method of Inglis et al. [15] with modifications. Fresh, young leaves of mango were cut into small pieces (excluding the midrib and leaf veins) and then pulverized using liquid nitrogen for 20 s (2 to 3 cycles). About 150 g of the pulverized tissues was transferred to a microcentrifuge tube and then pre-washed by adding a sorbitol solution pre-added with 2-mercaptoethanol (1% v/v). The tube was centrifuged at 12,000 rpm for 5 min, then the supernatant was discarded. The pulverized tissues were lysed by adding 700 μL of CTAB in the tube, vortexed for 5 s, then heated at 65 °C for 1 h with inversion of the tube every 10 min. The tube was then left at room temperature for 10 min, and 700 μL of 24:1 chloroform to isoamyl alcohol solution (CIA) was added to separate the cellular components. The tube was vortexed for 10 s, then centrifuged at 12,000 rpm for 5 min. Afterwards, the supernatant was transferred to a new tube and 10% of 3M sodium acetic acid and ice-cold isopropanol (2x volume) were added. The tube was incubated for 1 h at −20 °C, then centrifuged at 10,000 rpm for 10 min. The supernatant was discarded, and the pellet (DNA) was washed with 1 mL of ice-cold 70% ethanol, then centrifuged at 10,000 rpm for 10 min. The ethanol was carefully removed, and the pellet was air-dried for 1 h and resuspended by adding 100 μL of Tris-EDTA (pre-added with RNAse). Afterwards, the tube was incubated at 37 °C for 30 min and then stored at −20 °C.

The quality of DNA was checked via gel electrophoresis using 1.5% agarose with SYBR Safe nucleic acid stain (Life Technologies Corporation, USA) and viewed using a gel documentation system (Gel Doc 1000, Bio-Rad Laboratories, USA). DNA samples showing bands were further checked using Epoch Microplate Spectrophotometer and fluorometer (DeNovix QFX Fluorometer), to ensure high-quality DNA that is amenable for the next-generation sequencing.

Whole-genome sequencing

The extracted high-quality DNA from three mango species were submitted for sequencing using the Illumina HiSeq 2500 platform (Macrogen, Korea) with a sequencing coverage of 1X per sample. Three DNA samples were sequenced per mango species. The raw reads of all samples were deposited in the NCBI under the BioProject number PRJNA740276.

Pre-processing of short reads

The low-quality base score sequences and adapter sequences from raw reads produced by Illumina HiSeq 2500 sequencing (short reads) were removed using Trimmomatic v0.36 [16] following these parameters: SLIDINGWINDOW:4:25, LEADING:3, TRAILING:3, MINLEN:75. The trimmed reads were subsequently evaluated for quality using the FastQC toolkit [17].

Mapping of pre-processed short reads

The pre-processed paired sequences of three samples per mango species were concatenated and then mapped to the recently published mango reference genomes of Alphonso [7] (BioProject PRJNA487154) and Tommy Atkins [6] (BioProject PRJNA450143) using Burrows-Wheeler Aligner tool (BWA) [18]. The bwa index and bwa mem commands were used for indexing of reference genomes and alignment of short reads, respectively. The sequence alignment map (SAM) produced was used to count the mapped reads and determine the alignment rate of short reads to the reference genomes using SAMtools [19] and BamTools [20], respectively.

Variant calling

Using the SAM file from the read mapping step as input, an analysis-ready binary alignment map (BAM) file was generated using the Picard tools [21] following the SortSAM, FixMateInformation, MarkDuplicates, and AddOrReplaceReadGroups commands. The reference genome was indexed using the SAMtools faidx command and a sequence dictionary was created using the CreateSequenceDictionary command of Picard tools. Variants (such as SNPs and InDels) between the three Philippine mango species and reference genomes of Alphonso and Tommy Atkins were detected following the Genome Analysis Toolkit (GATK) Best Practices workflow [22]. The read mapping artifacts were minimized through local realignment around InDels by using the RealignerTargetCreator and IndelRealigner commands. Variants were called using the HaplotypeCaller command by setting the output mode to EMIT_VARIANTS_ONLY and calling the confidence threshold (stand_call_conf) to 20. The raw variant call format (VCF) file produced was filtered using the VariantFiltration command following the recommended parameters for SNPs and InDels. Using the SelectVariants -ef command, only the SNPs and InDels that pass the first filtering were printed and considered in the new VCF output. Then, base quality score recalibration was performed using BaseRecalibrator and PrintReads commands, to correct the bias of the per-base estimate of error generated by the sequencing platform. Afterwards, the second round of variant calling and filtering using the HaplotypeCaller and VariantFiltration commands, respectively, was performed to identify high-confidence SNPs and InDels. The final VCFs containing high confidence variants were then used as input to CircosVCF [23] for visualization of variant density in circos plots. The VCFtools [24] was used to create an InDel histogram.

Variant effects, phylogenetic relationship, and kinship analysis

The generated VCFs of the three mango species were analyzed for variant effects on the gene regions using the SnpEff toolbox [25]. The SnpEff functional classes detected in all SNPs and InDels were 3′ and 5′ untranslated region (UTR) variant; downstream and upstream gene variant; intergenic region; intragenic variant; intron variant; splice acceptor, splice donor, and splice region variant; start lost and start retained variant; and stop gained, stop lost, and stop retained variant. The functional classes detected only for SNPs were 5′ UTR premature start codon gain variant, initiator codon variant, missense variant, and synonymous variant. Meanwhile, the functional classes detected only for InDels include 3′ and 5′ UTR truncation, bidirectional gene fusion, conservative inframe insertion and deletion, disruptive inframe insertion and deletion, exon loss variant, frameshift variant, and non-coding transcript variant. Other important information provided by SnpEff are the variant rate details (per chromosome), variant types, base changes for SNPs including transitions (Ts) and transversions (Tv) ratio, allele data, and variant effects by impact which are classified as high, moderate, low, and modifier. Only the SNPs and InDels identified as high impact were considered for further analysis. The generated VCFs were also used to construct a UPGMA phylogenetic tree using VCF2PopTree [26] as well as for kinship analysis using the vcf2kinship command of Rvtests [27] following the identity-by-state (IBS) model.

Gene ontology (GO), GO enrichment, and KEGG analyses of high-impact variants

The protein sequences of gene IDs identified as high impact were retrieved and Gene Ontology (GO) analysis was performed using the BLAST2GO package [28]. The homology of the protein sequences was determined using the UniProtKB/SwissProt protein database via BLASTp analysis (with an e value of 1e–3). The BLAST results were then mapped and annotated to produce the GO annotations from the three domains of molecular function (MF), biological processes (BP), and cellular component (CC) assigned to each protein sequence. GO enrichment analysis of biological processes was performed using agriGO [29, 30]. The hypergeometric statistical test method and Yekutieli multi-test adjustment method [with False Discovery Rate (FDR) under dependency] were the parameters used for the analysis. The significance level was set at P < 0.05. KEGG analysis [31] was also performed using the single-directional best hit method and BLAST search program with representative data set for eukaryotes.

Results

Mapping of reads to the reference genomes

Trimming/filtering of the raw sequences produced a total of 22.8 million reads for M. odorata (Huani), 20.7 million reads for M. altissima (Paho), and 18.9 million reads for M. indica Carabao (Table 1). These were used for alignment and mapping to the two reference genomes from Alphonso and Tommy Atkins varieties. A total of 21.7 million (95.07%), 19.3 million (93.39%), and 17.8 million (94.46%) high-quality-filtered reads of M. odorata, M. altissima, and M. indica Carabao, respectively, were successfully mapped to the Alphonso reference genome with sequencing coverage of 4.30, 3.98, and 3.55X, respectively (Table 1). Meanwhile, 21.6 million (94.71%), 19.3 million (93.14%), and 17.8 million (93.99%) high-quality-filtered reads of M. odorata, M. altissima, and M. indica Carabao, were successfully mapped to the Tommy Atkins reference genome with sequencing coverage of 3.53, 3.26, and 2.91X, respectively (Table 1).

Table 1 Mapping of sequences (short reads) of three Philippine mango species to Alphonso and Tommy Atkins mango reference genomes

Identification of SNPs and InDels

By mapping the reads to the Alphonso genome (Table 2), 4,353,063 variants were detected in M. odorata. This comprised of 3,826,194 SNPs and 526,869 InDels with an average variant rate of one SNP every 93 bases and one InDel every 678 bases. In M. altissima, 3,392,763 variants were found comprising of 2,918,359 SNPs and 474,404 InDels with an average variant rate of one SNP every 122 bases and one InDel every 753 bases. In M. indica Carabao, 2,755,267 variants were detected consisting of 2,355,481 SNPs and 399,786 InDels with an average variant rate of one SNP every 151 bases and one InDel every 894 bases. Meanwhile, when the reads were mapped to the Tommy Atkins genome (Table 2), a total of 4,277,287 variants were found in M. odorata. This consisted of 3,777,813 SNPs and 499,474 InDels with an average variant rate of one SNP every 99 bases and one InDel every 755 bases. For M. altissima, 3,449,917 variants were detected comprising of 2,990,377 SNPs and 459,540 InDels with an average variant rate of one SNP every 126 bases and one InDel every 821 bases. M. indica Carabao had a total of 2,852,480 variants which include 2,448,630 SNPs and 403,850 InDels, with an average variant rate of one SNP every 154 bases and one InDel every 934 bases.

Table 2 Number of SNPs and InDels identified in three Philippine mango species

Distribution of SNPs and InDels

The density and frequency of SNPs and InDels in mango chromosomes (n=20) are presented in Figs. 1 and 2. The Alphonso variety has a decreasing chromosome size; thus, higher SNPs and InDels were observed in chromosome 1 and lowest at chromosome 20 in all mango species used (Fig. 2a, b). On the other hand, for the Tommy Atkins genome, a non-uniform distribution of SNP and InDels across the 20 mango chromosomes was observed in all mango species analyzed (Fig. 2c, d). Chromosome 6 showed the least number of SNPs and InDels as this is the smallest chromosome in Tommy Atkins. The SNPs were generally highest in M. odorata and lowest in M. indica Carabao (Figs. 1 and 2). The detected nucleotide substitutions in the SNPs are classified as transitions (Ts) which involve A/G and C/T substitution, and transversions (Tv) which include A/C, A/T, C/G, and G/T substitutions (Fig. 3). In the Philippine mangoes studied, Ts substitution was the most abundant (70%) compared to Tv substitution (30%) regardless of the reference genome used. With this, the Ts/Tv ratios of the three mango species used ranged from 2.33 to 2.43 upon mapping to the Alphonso and Tommy Atkins genome. In Ts, the number of A/G is almost equal to the C/T type in each mango species, while for Tv, A/T substitution was the highest comprising 35–36% of Tv substitutions (Fig. 3). Similar to SNPs, InDels were also highest in M. odorata and lowest in M. indica Carabao (Figs. 1 and 2). The predominant length of InDels ranged from 1 to 12 bp which accounts for around 92% of the total number of InDels, of which 48% were mononucleotide InDels (Fig. 4).

Fig. 1
figure 1

Density of SNPs and InDels in the chromosomes (n=20) of three Philippine mango species using Alphonso (a) and Tommy Atkins (b) reference genomes

Fig. 2
figure 2

Frequency of SNPs and InDels in the chromosomes (n=20) of the three Philippine mango species using Alphonso (a and b, respectively) and Tommy Atkins (c and d, respectively) reference genomes

Fig. 3
figure 3

Transition (Ts) and transversion (Tv) substitutions in SNPs in the three Philippine mango species using Alphonso (a) and Tommy Atkins (b) reference genomes

Fig. 4
figure 4

Distribution of InDels in the three Philippine mango species using Alphonso (a) and Tommy Atkins (b) reference genomes

Shared and unique SNPs and InDels

The three mango species shared 449,112 and 492,271 SNPs relative to the Alphonso and Tommy Atkins reference genomes, respectively (Fig. 5a, b). Likewise, the three species shared 117,998 and 121,266 InDels based on the two reference genomes (Fig. 5c, d). Meanwhile, 1,973,248 (51.57%), 1,371,800 (47%), 933,121 (39.61%) SNPs and 209,681 (39.80%), 194,834 (41.07%), and 129,647 (32.43%) InDels were unique to M. odorata, M. altissima, and M. indica Carabao, respectively, upon mapping to the Alphonso reference genome (Fig. 5a, c). On the other hand, 1,868,039 (49.45%), 1,372,006 (45.88%), and 946,353 (38.65%) SNPs and 189,802 (38%), 184,367 (40.12%), and 130,182 (32.24%) InDels were unique to M. odorata, M. altissima, and M. indica Carabao, respectively, upon mapping to the Tommy Atkins reference genome (Fig. 5b and d).

Fig. 5
figure 5

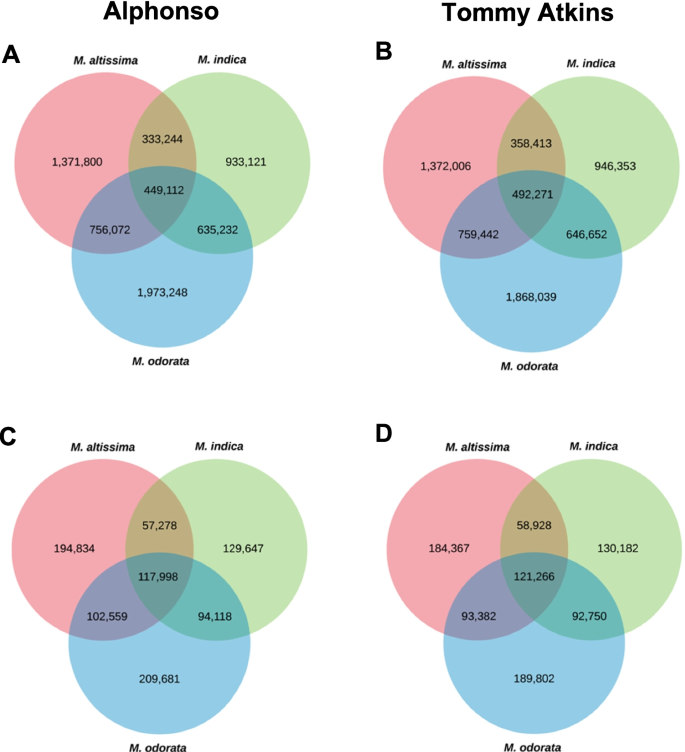

Number of shared and unique SNPs (a and b) and InDels (c and d) among the three Philippine mango species using Alphonso and Tommy Atkins reference genomes

Analysis of variant effects

Analysis of the functional classes of identified SNPs are shown in Table 3. Majority of the SNPs observed were in the intergenic (14,016,127; 76.52%) and intronic (3,305,720; 18.05%) regions, and 9,020,409 (49.25%) and 8,384,036 (45.77%) SNPs were positioned in the upstream and downstream regions from the genes set, respectively. Meanwhile, 569,575 (3.11%) SNPs were missense variants. SNPs such as 3′/5′ UTR variants (362,213), initiator codon variants (162), intragenic variants (219), splice variants (91,281), start lost/retained variants (1196), stop gained/lost/retained variants (12,945), and many synonymous variants (414,577) were also detected. For the functional classes of InDels (Table 4), most of the InDels observed were also identified in the intergenic (2,126,610; 76.94%) and intronic (564,396; 20.42%) regions, and 1,641,997 (59.41%) and 1,466,121 (53.04%) InDels were positioned in the upstream and downstream regions from the genes set, respectively. Meanwhile, 34,917 (1.26%) of InDels were frameshift variants. InDels such as 3′/5′ UTR variants (73,304), bidirectional gene fusion (16), conservative inframe InDel (7,465), disruptive inframe InDel (10,680), exon loss variant (19), intragenic variant (69), non-coding transcript variant (950), splice variants (16,620), start lost/retained variants (657), and stop gained/lost/retained variants (1755) were also detected. The complete SnpEff results are provided in Supplemental Files 1A (Alphonso) and 1B (Tommy Atkins).

Table 3 Functional annotation of the detected SNP variants in three Philippine mango species
Table 4 Functional annotation of the detected InDel variants in three Philippine mango species

GO analysis and annotation of high-impact variants

The SNPs and InDels with high-impact effects were functionally annotated and used for GO enrichment analysis. A total of 21 GO-enriched terms for biological process (GO:0008150) were detected in the genes with high-impact variants (Supplemental File 2). GO enrichment analysis showed that regulation of biological processes (GO:0050789), biological regulation (GO:0065007), response to stimulus (GO:0050896), and most especially, cellular process (GO:0009987) and metabolic process (GO:0008152) were the highly enriched biological processes in the three mango species (Fig. 6 and Supplemental File 2). In this study, a total of 56,982 high-impact variants were identified and mapped onto 37,746 genes across the three mango species (Supplemental Table 1). Around 75% (28,337) of these genes containing high-impact variants were well-known, while 25% (9409) remain unknown (Supplemental Table 1). Among the high-impact variants found in well-annotated genes include those with potential economic importance and useful for breeding, i.e., 6945 genes for defense/resistance/immune response to insects and pathogens, 323 genes for fruit development, and 338 genes for anthocyanin production found across the Philippine mango species studied (Table 5). The complete GO enrichment analysis (with FDR values) is provided in Supplemental File 2, and the complete functional annotation of genes with high-impact variants is provided in Supplemental Files 3A (Alphonso) and 3B (Tommy Atkins).

Fig. 6
figure 6

Gene Ontology (GO) enrichment analysis of high-impact variants from the three Philippine mango species

Table 5 Number of selected genes with potential economic importance from high-impact variants in three Philippine mango species

Analysis of shared and unique genes with high impact variant effects

Compared to the Alphonso genome, 772 and 890 genes with high-impact SNPs and InDels, respectively, were found unique to M. odorata, 523 and 788 genes for M. altissima, and 373 and 552 genes for M. indica Carabao (Fig. 7a). Compared to Tommy Atkins genome, 624 and 576 genes with high-impact SNPs and InDels, respectively, were found unique to M. odorata, 432 and 577 genes for M. altissima, and 328 and 389 genes for M. indica Carabao (Fig. 7b). Meanwhile, 195 and 197 genes with high-impact variant effects were shared among the three Philippine mangoes using the two reference genomes, respectively (Fig. 7, Supplemental File 4).

Fig. 7
figure 7

Venn diagram showing the overlap of genes with high-impact SNPs and InDels in all studied Philippine mango species using Alphonso (a) and Tommy Atkins (b) reference genomes

Phylogenetic and kinship analyses

In terms of alleles observed in the mango species, M. odorata showed the highest number of alleles (1.5 million), followed by M. altissima (1.3 million), and lastly M. indica Carabao (1.1 million) using the two reference genomes. All allele data (i.e., number of alleles, total heterozygous alleles, total missing alleles, and total polymorphic alleles) are presented in Supplemental Table 2. Meanwhile, phylogenetic analysis revealed 2 clades: clade I includes M. odorata and M. indica Carabao while clade II includes M. altissima only (Supplemental Fig. 1). Kinship analysis showed an IBS value of 1.594 between M. indica Carabao and M. odorata, IBS value of 1.589 between M. altissima and M. odorata, and IBS value of 1.531 between M. indica Carabao and M. altissima (Supplemental Table 3).

Discussion

Genome-wide variant analysis revealed that most variants (SNPs and InDels) were observed in M. odorata (4,353,063 and 4,277,287 for Alphonso and Tommy Atkins genomes, respectively) and least in M. indica Carabao (2,755,267 and 2,852,480 for Alphonso and Tommy Atkins genomes, respectively) (Table 2). This result is expected as M. odorata is a heterozygous variety and believed to be a cross between M. indica and M. foetida [5]. M. indica and M. foetida belong to separate Mangifera subgenus: Mangifera Mangifera and Mangifera Limus, respectively. Hence, M. odorata showed the highest variation as a hybrid of the two subgenera. It is followed by M. altissima, a highly homozygous, self-pollinating, mango species which belong to the subgenus Mangifera. The Carabao variety, although a heterozygous cultivar, showed the least number of variants which could be explained by its conspecificity with the two reference genomes (M. indica). Phylogenetic and kinship analyses also revealed that M. indica Carabao is more related to M. odorata than with M. altissima, as shown in the clustering in the dendrogram and kinship (IBS) values (Supplemental Fig. 1, Supplemental Table 3). A pioneering effort of analyzing Philippine mango accessions was reported by Lachica et al. [32] wherein 31,208 SNPs were identified across 341 mango accessions via genotyping-by-sequencing (GBS) (using DArTseq platform). Wang et al. [7] compared 53 mango accessions to the constructed Alphonso genome and identified a total of 21,040,730 variants or 53.9 variants per kilobase on average. These high-confidence variants include 19,433,034 SNPs and 1,607,696 InDels. Meanwhile, by comparing the Kensington Pride mango onto the Tommy Atkins TA4 assembly, Bally et al. [6] identified a total of 9,030,142 variants which comprised of 6,291,666 SNPs, 1,568,959 multi-nucleotide polymorphisms (MNPs), 468,881 InDels, and 700,636 mixed variants, with an average variant rate of one variant every 41 bp.

Many overlapping variants were observed in the three mango species (Fig. 5). These could be utilized for further research of common function or phenotype of Mangifera species. On the other hand, approximately 50, 46, and 38% of the variants were unique to M. odorata, M. altissima, and M. indica Carabao, respectively, upon comparison to the two currently available mango reference genomes (Fig. 5). The unique variants could be used for further characterization and genetic research of specific mango species or varieties. The observed Ts/Tv ratios are comparable to the findings of Bally et al. [6] for mango, thus indicating the correctness of the workflow used in this study. The high occurrence of Ts (Fig. 3) is termed as “transition bias” and has been reported in many crop species such as rice [33, 34], foxtail millet [35], maize [36], tea plant [37], and soybean [38]. The high rate of A/G and C/T substitutions (Fig. 3) is likely attributed to the methylation of C when it is adjacent to G (CpG dinucleotides), forming a 5-methylcytosine that can transition into T upon deamination, thus also causing a G to A substitution on the other hand [38, 39]. The number of InDels tends to decrease gradually as the length of InDel increases (Fig. 4). In this study, the predominant InDel length for the mango was 1 to 12 bp with almost half consisting of mononucleotide InDels. In tea plants, the predominant InDel length is 1 to 20 bp with mononucleotide InDels as the most abundant type [37]. More high-impact variants were observed in InDels than SNPs, leading to a greater number of genes with high-impact InDels (Supplemental Table 1). High-impact variants result in protein truncation or triggering loss/gain of function, frameshift variant, or splice donor variant [40].

In the Philippines, the occurrence of insect pests (e.g., oriental fruit fly, cecid fly) and diseases (e.g., anthracnose, scab, stem-end rot) [41,42,43,44] limits the country from maximizing mango export potential. These biotic constraints are often difficult to control and can affect mango at different developmental stages causing a significant reduction in fruit yield and quality [45, 46]. Thus, breeding of mango for resistance can provide a long-term solution for the Philippines. The source reference genomes Alphonso and Tommy Atkins are reported for their long shelf life which is also associated to their considerable resistance to diseases [47,48,49]. This highlights the importance of the identified defense/resistance/immune response-related genes totaling to 6945 genes (Table 5, Supplemental Files 3A and 3B). The two reference varieties also express red/pink blush on their fruit peel, in contrast to the Philippine mango species studied which only appear green or yellow throughout their fruit stages until ripening. In recent years, the Philippines has been interested in developing a mango export variety with a red/pink blush appearance to target international markets that prefer this type of mango. The red/pink blush coloration of mango peel is mainly attributed to anthocyanin production [50] wherein genes related to this biochemical process have been identified in this study totaling to 338 genes (Table 5, Supplemental Files 3A and 3B). KEGG analysis revealed that these genes (including other genes with high impact variants) are involved in the flavonoid biosynthesis pathways which provide precursors for the biosynthesis of anthocyanins (Supplemental Fig. 2).

Analysis of variant effects and functional annotation across the three mango species revealed that 25% of genes containing high-impact variants were found to be novel, or their biological functions have not yet been investigated in mangoes (Supplemental Table 1). Meanwhile, approximately 200 genes with high-impact variants were commonly shared among all mango species which imply consistent gene variations to the two reference genomes (Fig. 7, Supplemental File 4). Analysis of this gene set showed that more than 30% encode proteins related to defense/resistance/immune response against pests and diseases (Supplemental File 4). Among these include the disease resistance proteins At4g27190, At4g27220, At5g63020, and At3g14460 which are proteins reported from Arabidopsis thaliana; RPP proteins (RPP13, RPP8, RPP13-like proteins 1, 2, and 3) which provide resistance against downy mildew caused by Peronospora parasitica [51,52,53]; RGA/RGA-blb proteins (RGA1-blb, RGA3-blb, and RGA4-blb) which are known to confer resistance against the devastating late blight disease caused by Phytophthora infestans [54, 55]; RPS (RPS2 RPS4, RPS5, and RPS6) and RPM1 proteins which provide resistance against the pathogen Pseudomonas syringae [56,57,58]; and LRK10L-1.2 protein which confers resistance against leaf rust caused by Puccinia triticina [59, 60]. Among these proteins, Lantican et al. [12] reported that the mango-specific orthogroup containing disease resistance protein At4g27220 was observed to have the highest number of members among the orthologous RGA (resistance gene analogs) gene sets in mango. Meanwhile, the RPP13-like protein 1 orthogroup is among the largest families of resistance genes in many crops and was also observed to have the highest frequency of gene duplication events in mango [12]. This suggests that these proteins also contributed to the evolutionary adaptation of mango during selective pressure caused by biotic stresses.

Conclusion

The whole genome of three Philippine mango species M. odorata (Huani), M. altissima (Paho), and M. indica Carabao was successfully sequenced and compared to two currently available mango reference genomes. This revealed the genome-wide variants (SNPs and InDels) including those putative genes with high-impact effects on economically important traits. To date, this is the first sequencing effort to comprehensively analyze genome-wide variants essential for the development of genome-wide markers specific to the Philippine mango species. The availability of this information provides novel genomic resources positioned to revolutionize the mango breeding programs in the Philippines.

Availability of data and materials

All data generated or analyzed during this study are included in this published article and its supplementary information files.

Abbreviations

BAM:

Binary alignment map

BLAST:

Basic Local Alignment Search Tool

BWA:

Burrows-Wheeler aligner

GATK:

Genome analysis toolkit

GO:

Gene ontology

IBS:

Identity-by-state

InDels:

Insertions-deletions

KEGG:

Kyoto Encyclopedia of Genes and Genomes

LRK10L-1.2:

Leaf rust 10 disease-resistance locus receptor-like protein kinase-like 1.2

RGA:

Resistance gene analog

RPP:

Resistance to Peronospora parasitica

RPS:

Resistance to Pseudomonas syringae

Rvtests:

Rare variant tests

SNPs:

Single-nucleotide polymorphisms

Ts:

Transitions

Tv:

Transversions

VCF:

Variant call format

References

  1. United Nations Comtrade Database– International Trade Statistics (2016) World Mango exports by all reporters and partners, 2005–2015 (based on HS80540). Accessed from United Nations Statistics Division (UNSD). https://comtrade.un.org/data

  2. Stark KF, Couto V, Gereffi G (2017) The Philippines in the mango global value chain. Center on Globalization, Governance & Competitiveness, Duke University. https://industry.gov.ph/wp-content/uploads/2017/08/The-Philippines-in-the-Mango-Global-Value-Chain.pdf

  3. PCARRD-DOST (2011) Reaping the sweet promises of the Philippine mango industry: PCARRD-DOST. Los Baños, Laguna, Philippines. http://www.pcaarrd.dost.gov.ph/home/portal/

  4. Philippine Statistics Authority (2021) Major fruit crops quarterly bulletin, January–March 2021. https://psa.gov.ph/fruits-crops-bulletin/mango. Accessed 28 Aug 2021

  5. Orwa C, Mutua A, Kindt R, et al (2009) Agroforestree Database: a tree reference and selection guide version 4.0. http://apps.worldagroforestry.org/treedb/AFTPDFS/Mangifera_odorata.PDF

  6. Bally ISE, Bombarely A, Chambers AH et al (2021) The ‘Tommy Atkins’ mango genome reveals candidate genes for fruit quality. BMC Plant Biol 21. https://doi.org/10.1186/s12870-021-02858-1

  7. Wang P, Luo Y, Huang J et al (2020) The genome evolution and domestication of tropical fruit mango. Genome Biol 21. https://doi.org/10.1186/s13059-020-01959-8

  8. Mukherjee SK, Litz RE (2009) Introduction: botany and importance. In: The Mango, 2nd Edition: Botany, Production and Uses. CABI, pp 1–18

    Google Scholar

  9. Bally IS, Lu P, Johnson PR (2009) Mango breeding. In: Breeding Plantation Tree Crops: Tropical Species. Springer, New York, NY, pp 51–82

    Chapter  Google Scholar

  10. Goodwin S, McPherson JD, McCombie WR (2016) Coming of age: ten years of next-generation sequencing technologies. Nat Rev Genet 17:333–351

    Article  Google Scholar

  11. Lantican DV, Strickler SR, Canama AO et al (2019) De novo genome sequence assembly of dwarf coconut (Cocos nucifera L. ’Catigan Green Dwarf’) provides insights into genomic variation between coconut types and related palm species. G3 Genes Genomes Genet 9:2377–2393. https://doi.org/10.1534/g3.119.400215

    Article  Google Scholar

  12. Lantican DV, Cortaga CQ, Manohar ANC et al (2020) Resistance gene analogs of mango: Insights on molecular defenses and evolutionary dynamics. Philipp J Sci 149:915–934

    Google Scholar

  13. Hasan N, Choudhary S, Naaz N et al (2021) Recent advancements in molecular marker-assisted selection and applications in plant breeding programmes. J Genet Eng Biotechnol 19. https://doi.org/10.1186/s43141-021-00231-1

  14. Cortaga CQ, Latina RA, Habunal RR, Lantican DV (2022) Identification and characterization of genome-wide resistance gene analogs (RGAs) of durian (Durio zibethinus L.). J Genet Eng Biotechnol 20. https://doi.org/10.1186/s43141-022-00313-8

  15. Inglis PW, Marilia de Castro RP, Resende LV, Grattapaglia D (2018) Fast and inexpensive protocols for consistent extraction of high quality DNA and RNA from challenging plant and fungal samples for high-throughput SNP genotyping and sequencing applications. PLoS One 13. https://doi.org/10.1371/journal.pone.0206085

  16. Bolger AM, Lohse M, Usadel B (2014) Trimmomatic: a flexible trimmer for Illumina sequence data. Bioinformatics 30:2114–2120. https://doi.org/10.1093/bioinformatics/btu170

    Article  Google Scholar

  17. Babraham Bioinformatics (2011) FastQC: a quality control tool for high throughput sequence data. Babraham Institute, Cambridge. https://www.bioinformatics.babraham.ac.uk/projects/fastqc/

  18. Li H (2013) Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM. arXiv:1303.3997v2

  19. Li H, Handsaker B, Wysoker A et al (2009) The sequence alignment/map format and SAMtools. Bioinformatics 25:2078–2079. https://doi.org/10.1093/bioinformatics/btp352

    Article  Google Scholar

  20. Barnett DW, Garrison EK, Quinlan AR et al (2011) Bamtools: a C++ API and toolkit for analyzing and managing BAM files. Bioinformatics 27:1691–1692. https://doi.org/10.1093/bioinformatics/btr174

    Article  Google Scholar

  21. Broad Institute (2016) Picard Tools. http://broadinstitute.github.io/picard/

  22. Van der Auwera GA, Carneiro MO, Hartl C et al (2013) From fastQ data to high-confidence variant calls: the genome analysis toolkit best practices pipeline. Curr Protoc Bioinformatics. https://doi.org/10.1002/0471250953.bi1110s43

  23. Drori E, Levy D, Smirin-Yosef P et al (2017) CircosVCF: circos visualization of whole-genome sequence variations stored in VCF files. Bioinformatics 33:1392–1393. https://doi.org/10.1093/bioinformatics/btw834

    Article  Google Scholar

  24. Danecek P, Auton A, Abecasis G et al (2011) The variant call format and VCFtools. Bioinformatics 27:2156–2158. https://doi.org/10.1093/bioinformatics/btr330

    Article  Google Scholar

  25. Cingolani P, Platts A, Wang LL et al (2012) A program for annotating and predicting the effects of single nucleotide polymorphisms, SnpEff: SNPs in the genome of Drosophila melanogaster strain w1118; iso-2; iso-3. Fly (Austin) 6:80–92. https://doi.org/10.4161/fly.19695

    Article  Google Scholar

  26. Subramanian S, Ramasamy U, Chen D (2019) VCF2PopTree: a client-side software to construct population phylogeny from genome-wide SNPs. PeerJ 2019. https://doi.org/10.7717/peerj.8213

  27. Zhan X, Hu Y, Li B et al (2016) RVTESTS: an efficient and comprehensive tool for rare variant association analysis using sequence data. Bioinformatics 32. https://doi.org/10.1093/bioinformatics/btw079

  28. Conesa A, Götz S, García-Gómez JM et al (2005) Blast2GO: a universal tool for annotation, visualization and analysis in functional genomics research. Bioinformatics 21:3674–3676. https://doi.org/10.1093/bioinformatics/bti610

    Article  Google Scholar

  29. Du Z, Zhou X, Ling Y et al (2010) agriGO: a GO analysis toolkit for the agricultural community. Nucleic Acids Res 38. https://doi.org/10.1093/nar/gkq310

  30. Tian T, Liu Y, Yan H et al (2017) AgriGO v2.0: a GO analysis toolkit for the agricultural community, 2017 update. Nucleic Acids Res 45:W122–W129. https://doi.org/10.1093/nar/gkx382

    Article  Google Scholar

  31. Moriya Y, Itoh M, Okuda S et al (2007) KAAS: an automatic genome annotation and pathway reconstruction server. Nucleic Acids Res 35. https://doi.org/10.1093/nar/gkm321

  32. Lachica JAP, Vilela JA, Santos MML, Ocampo ETM (2019) SNP discovery and genetic clustering of Philippine “Carabao” Mango (Mangifera indica L. cv. ‘Carabao’) using Genotype-By-Sequencing (DArTseq). Philipp J Crop Sci 44:10–17

  33. Chai C, Shankar R, Jain M, Subudhi PK (2018) Genome-wide discovery of DNA polymorphisms by whole genome sequencing differentiates weedy and cultivated rice. Sci Rep 8. https://doi.org/10.1038/s41598-018-32513-z

  34. Morton BR (1995) Neighboring base composition and transversion/transition bias in a comparison of rice and maize chloroplast noncoding regions. Proc Natl Acad Sci U S A 92:9717–9721. https://doi.org/10.1073/pnas.92.21.9717

    Article  Google Scholar

  35. Bai H, Cao Y, Quan J et al (2013) Identifying the genome-wide sequence variations and developing new molecular markers for genetics research by re-sequencing a landrace cultivar of foxtail millet. PLoS One 8. https://doi.org/10.1371/journal.pone.0073514

  36. Batley J, Barker G, O’Sullivan H et al (2003) Mining for single nucleotide polymorphisms and insertions/deletions in maize expressed sequence tag data. Plant Physiol 132:84–91. https://doi.org/10.1104/pp.102.019422

    Article  Google Scholar

  37. Liu S, An Y, Tong W et al (2019) Characterization of genome-wide genetic variations between two varieties of tea plant (Camellia sinensis) and development of InDel markers for genetic research. BMC Genomics 20. https://doi.org/10.1186/s12864-019-6347-0

  38. Ramakrishna G, Kaur P, Nigam D et al (2018) Genome-wide identification and characterization of InDels and SNPs in Glycine max and Glycine soja for contrasting seed permeability traits. BMC Plant Biol 18. https://doi.org/10.1186/s12870-018-1341-2

  39. Waters TR, Swann PF (2000) Thymine-DNA glycosylase and G to A transition mutations at CpG sites. Mutat Res Rev Mutat Res 462. https://doi.org/10.1016/S1383-5742(00)00031-4

  40. Zhang F, Qu K, Chen N et al (2019) Genome-wide SNPs and indels characteristics of three Chinese cattle breeds. Animals 9. https://doi.org/10.3390/ani9090596

  41. Alvarez LV, Hattori Y, Deocaris CC et al (2020) Colletotrichum asianum causes anthracnose in Philippine mango cv. Carabao. Australas Plant Dis Notes 15. https://doi.org/10.1007/s13314-020-00384-x

  42. Cortaga CQ, Sison MLJ (2021) Molecular evidence for potential delineation of Bactrocera occipitalis from its sympatric species, Bactrocera dorsalis (Diptera: Tephritidae), in the Philippines. J Entomol Sci 56:118–122

    Article  Google Scholar

  43. Galsurker O, Diskin S, Maurer D et al (2018) Fruit stem-end rot. Horticulturae 4. https://doi.org/10.3390/horticulturae4040050

  44. Tumang GS (2019) Pests and diseases identification in mango using MATLAB. In: Proceeding - 5th International Conference on Engineering, Applied Sciences and Technology (ICEAST). https://doi.org/10.1109/ICEAST.2019.8802579

  45. Bally ISE (2006) Mangifera indica (mango), ver. 3.1. In: Species Profiles Pacific Island Agroforestry. https://agroforestry.org/images/pdfs/Mangifera-mango.pdf

  46. Sison MLJ, Cortaga CQ, Barcos AKS et al (2020) Resistance screening and influence of fruit physico-biochemical properties of “Carabao” and other mango varieties against oriental fruit fly, Bactrocera dorsalis (Diptera: Tephritidae), in the Philippines. Philipp J Sci 149:1175–1187

    Google Scholar

  47. de Oliveira KÁR, Berger LRR, de Araújo SA et al (2017) Synergistic mixtures of chitosan and Mentha piperita L. essential oil to inhibit Colletotrichum species and anthracnose development in mango cultivar Tommy Atkins. Food Microbiol 66:96–103. https://doi.org/10.1016/j.fm.2017.04.012

    Article  Google Scholar

  48. Deshpande AB, Anamika K, Jha V et al (2017) Transcriptional transitions in Alphonso mango (Mangifera indica L.) during fruit development and ripening explain its distinct aroma and shelf life characteristics. Sci Rep 7. https://doi.org/10.1038/s41598-017-08499-5

  49. Sivakumar D, Jiang Y, Yahia EM (2011) Maintaining mango (Mangifera indica L.) fruit quality during the export chain. Food Res Int 44:1254–1263. https://doi.org/10.1016/j.foodres.2010.11.022

    Article  Google Scholar

  50. Sivankalyani V, Feygenberg O, Diskin S et al (2016) Increased anthocyanin and flavonoids in mango fruit peel are associated with cold and pathogen resistance. Postharvest Biol Technol 111:132–139. https://doi.org/10.1016/j.postharvbio.2015.08.001

    Article  Google Scholar

  51. Parker JE, Coleman MJ, Szabò V et al (1997) The Arabidopsis downy mildew resistance gene RPP5 shares similarity to the toll and interleukin-1 receptors with N and L6. Plant Cell 9:879–894. https://doi.org/10.1105/tpc.9.6.879

    Article  Google Scholar

  52. Sinapidou E, Williams K, Nott L et al (2004) Two TIR:NB:LRR genes are required to specify resistance to Peronospora parasitica isolate Cala2 in Arabidopsis. Plant J 38:898–909. https://doi.org/10.1111/j.1365-313X.2004.02099.x

    Article  Google Scholar

  53. Wan L, Essuman K, Anderson RG et al (2019) TIR domains of plant immune receptors are NAD+-cleaving enzymes that promote cell death. Science (80-) 365:799–803. https://doi.org/10.1126/science.aax1771

    Article  Google Scholar

  54. Kuang H, Wei F, Marano MR et al (2005) The R1 resistance gene cluster contains three groups of independently evolving, type I R1 homologues and shows substantial structural variation among haplotypes of Solanum demissum. Plant J 44:37–51. https://doi.org/10.1111/j.1365-313X.2005.02506.x

    Article  Google Scholar

  55. Lokossou AA, Rietman H, Wang M et al (2010) Diversity, distribution, and evolution of Solanum bulbocastanum late blight resistance genes. Mol Plant-Microbe Interact 23:1206–1216. https://doi.org/10.1094/MPMI-23-9-1206

    Article  Google Scholar

  56. Kim SH, Il KS, Saha D et al (2009) Resistance to the Pseudomonas syringae effector HopA1 is governed by the TIR-NBS-LRR Protein RPS6 and is enhanced by mutations in SRFR1. Plant Physiol 150:1723–1732. https://doi.org/10.1104/pp.109.139238

    Article  Google Scholar

  57. Mackey D, Holt BF, Wiig A, Dangl JL (2002) RIN4 interacts with Pseudomonas syringae type III effector molecules and is required for RPM1-mediated resistance in Arabidopsis. Cell 108:743–754. https://doi.org/10.1016/S0092-8674(02)00661-X

    Article  Google Scholar

  58. Warren RF, Henk A, Mowery P et al (1998) A mutation within the leucine-rich repeat domain of the Arabidopsis disease resistance gene RPS5 partially suppresses multiple bacterial and downy mildew resistance genes. Plant Cell 10:1439–1452. https://doi.org/10.1105/tpc.10.9.1439

    Article  Google Scholar

  59. Feuillet C, Reuzeau C, Kjellbom P, Keller B (1998) Molecular characterization of a new type of receptor-like kinase (wlrk) gene family in wheat. Plant Mol Biol 37:943–953. https://doi.org/10.1023/A:1006062016593

    Article  Google Scholar

  60. Shiu SH, Bleecker AB (2003) Expansion of the receptor-like kinase/Pelle gene family and receptor-like proteins in Arabidopsis. Plant Physiol 132:530–543. https://doi.org/10.1104/pp.103.021964

    Article  Google Scholar

Download references

Acknowledgements

The authors thank Marion Laurence Parot and Leilani Elca for the administrative support.

Funding

This study was supported by the Department of Science and Technology – Philippine Council for Agriculture, Aquatic, and Natural Resources Research and Development (DOST-PCAARRD) under the project “Full Genome Sequencing of Selected Philippine Mango Species.”

Author information

Authors and Affiliations

Authors

Contributions

CQC—conceptualization, data analysis, data curation, data interpretation, and manuscript drafting; JAPL—conceptualization, DNA extraction, review, and editing; DVL—conceptualization, supervision, data analysis, review, and editing; ETMO—conceptualization, funding acquisition, project management, review, and editing. The authors have read and approved the final manuscript for publication.

Corresponding author

Correspondence to Cris Q. Cortaga.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Supplemental Figure 1

. Phylogenetic analysis of mango species.

Additional file 2: Supplemental Figure 2

. KEGG pathway (flavonoid biosynthesis).

Additional file 3: Supplemental File 1

. A_Alphonso SnpEff. B_Tommy Atkins SnpEff.

Additional file 4: Supplemental File 2

. GO enrichment analysis results.

Additional file 5: Supplemental File 3

. A_Alphonso Blast2GO results. B_Tommy Atkins Blast2GO results.

Additional file 6: Supplemental File 4

. Commonly shared genes with high impact variants.

Additional file 7: Supplemental Table 1

. Breakdown of genes with high impact variants.

Additional file 8: Supplemental Table 2

. Alleles observed in the mango species.

Additional file 9: Supplemental Table 3

. Kinship analysis of mango species.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Cortaga, C.Q., Lachica, J.A.P., Lantican, D.V. et al. Genome-wide SNP and InDel analysis of three Philippine mango species inferred from whole-genome sequencing. J Genet Eng Biotechnol 20, 46 (2022). https://doi.org/10.1186/s43141-022-00326-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s43141-022-00326-3

Keywords
