Genome-wide in silico identification of phospholipase D (PLD) gene family from Corchorus capsularis and Corchorus olitorius: reveals their responses to plant stress



Plant grows in nature facing various types of abiotic stresses for their normal growth and development. During abiotic stress, plants evolve different types of mechanisms to survive in a hostile environment. Phospholipase D (PLD) plays important role in the regulation of diverse cellular processes including stress responses in plants. Member of PLD genes are well studied in different model plants; however, their functions in the jute are not clear yet.


In the present study, a total of 12 and 11 PLD genes were identified in the genome of C. capsularis and C. olitorius, respectively. The presence of the two conserved HKD motifs in PLD genes except for CoPLDδ-2 in jute suggests their strong lipase activity. Twenty different motifs were found in the identified PLD genes, and PLD-β1, PLD-γ1, and all members of PLD-δ1 of both jute species contained the highest number of motifs. Phylogenetic analysis showed the close evolutionary relationship among the five groups of jute PLD proteins along with the PLD proteins from Arabidopsis. Tissue-specific expression pattern of PLDα1-2, PLD-α2, PLDβ1, PLDγ1, and PLDδ1 of two jute species suggested their involvement in plant growth and development. However, the expression pattern of PLDα1-2, PLDα1-3, PLD-α4, PLDδ1, and PLDδ3 indicated their association during waterlogging stress. In addition, PLD-α2, PLDβ1, and PLDδ2 seemed to be involved in drought stress as well as salinity stress.


This genome-wide identification of jute PLD genes from C. capsularis and C. olitorius will help to further functional characterization of the PLD genes for developing stress-tolerant jute variety.


Plants grow in nature where they are constantly facing abiotic and biotic stresses during their growth and development. They need to adjust themselves in nature by adopting the surrounding changes for their survival and it is also crucial to prevent cellular damage [1]. Environmental stresses (abiotic stress) in plants are minimized by several mechanisms including lipid signaling pathway and higher plants respond instantly to overcome the abiotic stresses by the modifications in their cellular process [2, 3]. Phospholipids are secondary messenger in lipid signaling pathway, produced immediately and transiently response in various stresses by the activation of phospholipases or lipid kinases [4].

Phospholipase D (PLD) proteins are member of the lipid signaling pathway that hydrolyzes the bonds of phospholipids for generating the phosphatidic acids (PA) with a free head group choline [5,6,7]. All eukaryotic PLDs were categorized into three subfamilies (C2-PLD, PX-PH-PLD, and SP-PLD) where C2-PLD subfamily regulates Ca+2-dependent while both PX (phox census sequence) and PH (pleckstrin homology) control Ca+2-independent activity [8, 9]. In addition, members of the SP-PLD subfamily contain a signal peptide in its N-terminus [10]. Biochemical studies identified an N-terminal phospholipid-binding sequence and two catalytic HKD (HxKxxxxD) motifs for lipase activity in the members of PLDs of all eukaryotic organisms [11].

PLDs has been shown to involve in plant growth and developmental processes under both abiotic and biotic stress [12, 13]. In Arabidopsis, PLDα1 has been shown responsible for PLD activity which stimulated accumulation of ABA and JA in wounding of plants, and also involved in stomatal closure during drought stress [14, 15]. In Oryza sativa, PLDβ1 gene was reported to be responsible for seed germination by stimulating ABA signaling pathway as well as protect plant from microbial attack [16]. The first complementary DNA (cDNA) of PLD was cloned in 1994 from castor bean; since then, many PLD proteins were identified from different plants [17]. Recent advances in genome sequencing facility have given an opportunity to dissect the member of PLD genes at the genomic level from any organism. However, the PLD protein family of many organisms including jute has not been studied yet.

Jute is an important natural phloem fiber producing plant with its vegetable properties [18], and contributes the national economy of Bangladesh by earning foreign currency [19, 20]. The quality of jute fiber produced from Bangladesh is incomparable and very much differ from synthetics [21,22,23]. However, jute production is hampered due to both biotic and abiotic stresses throughout its growing season [24]. Among abiotic stress, water deficiency, water-logging condition, and salinity stress are noticeable for hampering jute yield [25,26,27]. However, yield loss of jute can be overcome through several way including searching of germplasms and developing new variety through transgenic and genome editing approaches. Therefore, characterization of the genes associated with stress responses in both jute species can be helpful for future breeding programs to improve the traits of jute.

Recent decoding of draft genome sequences of both jute species [28] has opened an opportunity to identify the PLD genes from jute. The present work was focused to identify the PLD genes through bioinformatics analysis to understand their relationship with other reported PLDs leading to stress-tolerant variety development.

Materials and methods

Identification of PLD genes from two jute species

For identifying PLD genes from both Corchorus capsularis and Corchorus olitorius genomes, genomic data of two jute species were downloaded from the National Center for Biotechnology Information (NCBI) database (PRJNA215141 and PRJNA215142). Reference protein sequences of PLD genes from the model plant Arabidopsis and rice along with other plants (cotton, grape, and poplus) were downloaded from the TAIR (, PlantGDB (, Cottongen (, and grape database ( grape/). BLAST tool was carried out for the detection of PLD homologous genes in both jute species. The E value threshold was selected at 10−10 for this analysis. All putative PLD genes were manually confirmed by the presence of HKD domain responsible for the hydrolysis activity through multiple sequence alignment (

Analysis of gene structure, domain, motifs, localization, and physiochemical properties

Exon and intron structures of PLD genes of both jute species were determined with the help of online software Gene Structure Display Server 2.0 (GSDS 2.0) ( through the information of general feature format (GFF). WoLF PSORT, an online-based platform, was used to predict the probable localization of PLD genes in both jute species [29]. Different physical and chemical assessment and related indexes like theoretical isoelectric point (pI), molecular formula, aliphatic index, stability index, and grand average of hydropathicity (GRAVY) were assed with the ProtParam tools ( [30, 31].

Phylogenetic analysis

ClustalW2 software was used to align the selected protein sequences for phylogenetic analysis of PLD proteins from two jute species, Arabidopsis, three cotton species, grape, Medicago, poplus, and peach. With the aligned protein file, a phylogenetic tree was constructed with MEGA X and neighbor-joining method was used for the phylogenetic tree [32, 33] inferred from 1000 bootstrap replicates with other default parameter.

Expression analysis of PLD genes

Publically available transcriptome data were downloaded from sequence read archive (SRA) and used for the expression pattern analysis of PLD genes of two jute species (C. capsularis and C. olitorius). For expression profiling of drought stress and salinity stress condition, data were downloaded from the project PRJNA378897, SRP116874, and SRP116874, respectively [27, 34, 35]. Data of waterlogging stress were collected form the accession number SRP049494, produced by our group earlier. Expression pattern of both jute species were compared by aligning the RNA-Seq reads with reference genomes of jute and then the transcript abundances were measured using the cufflinks v2.2.1 package, visualized by R libraries [36].


Identification of PLD genes from two jute species (C. capsularis and C. olitorius) and conservation of HKD domain

To identify the PLD genes from two jute species, protein sequences of PLD genes from Arabidopsis, cotton, grape, poplus, and rice were employed as query, and found 12 and 11 PLD genes in C. capsularis and C. olitorius, respectively (Table 1). Based on the nomenclature instruction for plants, Cc and Co symbols were used for C. capsularis and C. olitorius, respectively. Depended on the amino acid sequence homology with Arabidopsis, PLD genes of both jute species were divided in five groups namely alpha (α), beta (β), gamma (γ), delta (δ), and zeta (ζ). Both jute species had the similar number of PLD genes in different groups except the zeta (ζ). Analysis also revealed that C. olitorius genome have one zeta (ζ) containing PLD genes, whereas C. capsularis have two members of zeta (ζ) containing PLD genes (Table 1). Next, the presence of two HKD domains was analyzed through the amino acid sequence of PLD genes. Analysis of protein sequence found higher conservation of two HKD (HxKxxxxD) domains in all PLD genes of both jute species except CoPLDδ-2 (Fig. 1). CoPLDδ-2 had only one HKD domain in its protein sequence; however, HKD domains were located far away from each other.

Table 1 Basic information of identified PLD genes of C. capsularis and C. olitorius
Fig. 1
figure 1

Amino-acid sequence alignment of the PLD genes of C. capsularis and C. olitorius containing conserved HKD motifs

Structure analysis of PLD genes in jute species

Structure analysis of PLD genes found that PLD-ζ1 contained the highest number of exon (20) and intron (19) in both jute species; however, this PLD-ζ1 gene did not have the higher protein length (Table 1 and Fig. 2). The analysis also observed that CoPLD-α1-3 from the C. olitorius had the lower number of exon (2) and intron (1) but not having the lower gene length. In case of gene length, CcPLD-β1 was the longest gene length having 10 exons and 9 introns followed by the CoPLD-β1. On the other hand, both CoPLD-α4 and CcPLD-α4 had the lower gene length (Table 1). Subcellular analysis revealed that most of the PLD proteins were found in the cytoplasm (61%) followed by endoplasmic reticulum (35%) (Table 1). However, CcPLD-β1 and Co PLD-β1 solely seemed to be localized in the nucleus. Results from motif analysis revealed that jute PLD genes contained twenty different motifs in their gene sequences (Fig. 3). The analysis detected the PLD-β1, PLD-γ1 of both jute species and CoPLD-δ1 of C. olitorius contained all motifs in their amino acid sequences; however, motif 8 was duplicated in CoPLD-β1 exceptionally. It was also observed that PLD-α1-1, PLD-α1-2, PLD-α1-3, and PLDα2 had the second highest number of motifs and all members of those genes did not contain the motif number 19 in both jute species. In addition, lowest number of motifs (9 motifs) was found in PLD-ζ1 in both jute species (Fig. 3).

Fig. 2
figure 2

Exon-intron structure of 23 PLD genes of C. capsularis and C. olitorius. Exons are shown in blue color and introns are in black lines

Fig. 3
figure 3

CcPLD and CoPLD genes and motifs structure. Exons and introns are indicated by boxes and lines, respectively. Motifs are numbered from 1 to 20 and highlighted in different colors. The length of motif for each PLD genes are displayed proportionately. The dendrogram in the left-hand side indicated four distinct phylogenetic groups

Physical and molecular characteristics of PLD genes

Different physical and molecular characteristics of PLD proteins were summarized in Table 2. Analysis found variation in theoretical isoelectric point (pl) ranged from 5.4–8.4 and 5.4–8.38 in C. capsularis and C. olitorius, respectively which was below 7.0 in most PLD proteins. These results clearly indicated that PLD proteins were slightly acidic to marginally basic. Next, the aliphatic index was measured which help to predict the thermal stability of the protein. The analysis found the higher aliphatic index of PLD proteins ranging from 71 to 87 in both jute species (Table 2). From this result, it can be predicted that PLD proteins are highly thermally stable. Half of the CcPLD and CoPLD proteins had values less than 40 in the instability index, suggesting their stability in nature. In addition, all the members of PLD protein in both jute species seemed to be hydrophilic as the contained negative value in GRAVY test (Table 2). Molecular weight analysis found the variation in PLD proteins varying from 88 to 122 kDa where higher weight was observed in PLD-β1 and PLD-ζ1 in both jute species. However, the lower molecular weight was found in PLD-α4 in both species and PLD-α1-3 in C. olitorius species (Table 2).

Table 2 List of identified PLD genes along with several physical and chemical properties

Phylogenetic analysis of PLD proteins of two jute species

By using the amino acid sequence of PLD proteins from two jute species as well as other some plants, a phylogenetic tree was constructed to understand the evolutionary history of the PLD proteins. The phylogenetic tree revealed that 12 CcPLD and 11 CoPLD (five groups) proteins are clustered into five different clades along with the Arabidopsis 12 AtPLD proteins (Fig. 4). Among the different clades, the α type of jute species created the largest clade having 53 members. However, epsilon (ε) isoform of cotton species was found phylogenetically related with alpha (α) isoform of both jute species as well as Arabidopsis. The second largest clade was with the member of PLDδ constituted with 38 members of different plant species (Fig. 4). It was also found that PLDβ and PLDγ of both jute species were phylogenetically closely related as they were under the same clade in the phylogenetic tree (Fig. 4). This might have resulted for the presence of similar motifs in the amino acid sequence and it was observed in the presence of motifs (Fig. 3). From the phylogenetic tree, it was also observed that jute species and Arabidopsis proteins do not contain the isoform phi (φ); however, grape, peach, Medicago truncaluta, and cotton species had this PLD isoform (Fig. 4). Members of PLDδ proteins from Arabidopsis and jute species were found to be closely related with PLDβ and PLDγ. However, PLDζ proteins are far away from the rest clades in evolutionary distance, suggesting their sequence characteristics might be varied from the other member of PLD proteins in jute species.

Fig. 4
figure 4

Phylogenetic relationship of PLD proteins among the C. olitorius, C. capsularis with different plant species. The phylogeny tree was constructed with MEGA X and neighbor-joining (NJ) method and 1000 replicates bootstraps where Cc, Co, At, Gh, Gr, Ga, Vv, Mt, Pt, and Pp indicates Corchorus capsularis, C. olitorius, Arabidopsis thaliana, Gossypium hirsutum, G. raimondi, G. arboretum, Vitis vinifera, Medicago truncaluta, Poplus tremula, and Prunus persica, respectively

Expression analysis of jute PLD genes

To investigate the probable functions of PLD genes of both jute species expression results from tissues, drought condition, salinity, and waterlogging conditions were analyzed.

In tissue-specific expression profiling, PLDα1-1 highly upregulated only in seedling stage in both jute species compare to the other tissues (Fig. 5A). In addition, CoPLDβ1 alone highly upregulated in seedling stage than the other PLD genes in two jute species. These results suggested the stage-specific function in jute plant. The analysis also observed higher expression of CoPLDα1-3 and CcPLDα1-3 in fiber cells than the remaining tissues. This result may indicate the specific function of PLDα1-3 during fiber cell formation. Whereas CoPLD-α2 and CcPLD-ζ1 showed higher expression patterns in stem cell compared to the other tissues (Fig. 5A). It was also observed that most PLD genes were upregulated in all tissues; however, downregulation was found in leaf and fiber cells. In addition, CcPLD-δ3 showed upregulated expression during the flowering and fruiting stage indicated the importance of this gene for flowering and fruiting for jute.

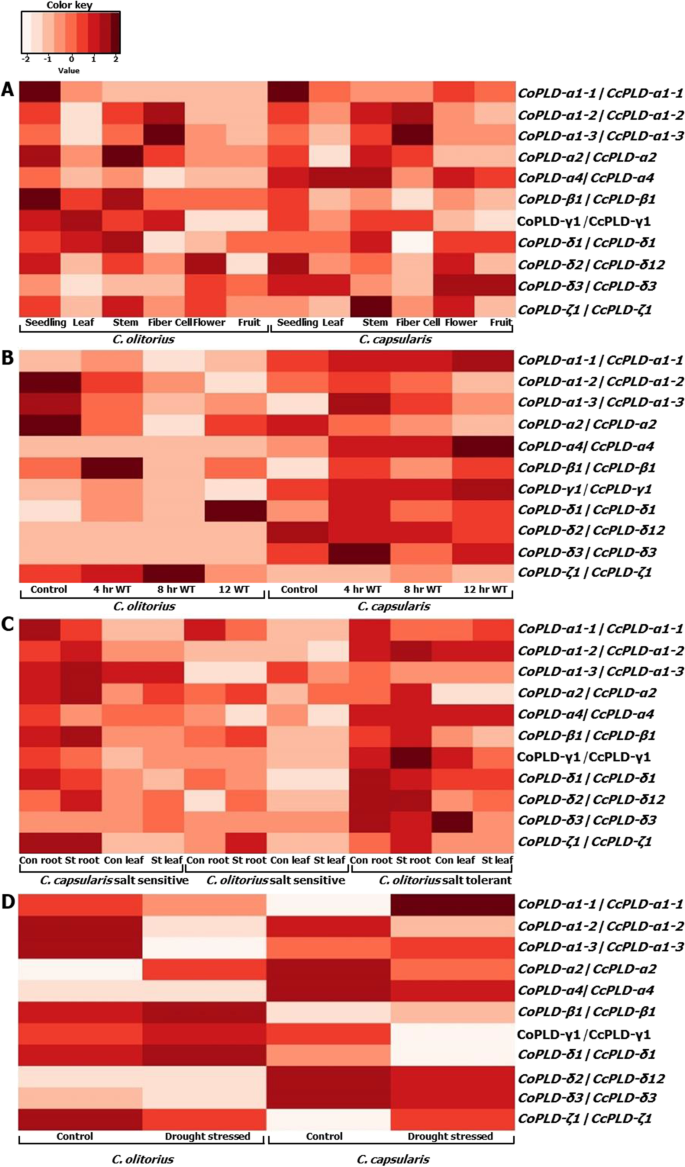

Fig. 5
figure 5

Expression profiling of the member of PLD gene from two jute species (C. capsularis and C. olitorius). Tissue-specific gene expression of PLD proteins in various developmental tissues (A), in waterlogging stress condition (B), in salinity stress condition (C), and drought stress condition (D). Here, WT, con, and St indicates waterlogging, control, and stress, respectively

Under waterlogging condition, expression pattern of three PLD genes of C. capsularis (CcPLDα1-1, CcPLD-α4, and CcPLDγ1) gradually increased with the increase of waterlogging periods (Fig. 5B). This result may indicate the involvement of these three PLD genes during waterlogging stress. In case of C. olitorius, CoPLD-ζ1 showed an increasing expression pattern up to 8 h of waterlogging condition indicating the importance of this gene during early waterlogging condition. Analysis also found that PLD genes of C. capsularis more or less upregulated under waterlogging stress compare to the PLD genes of C. olitorius. This result indicated the reasons of being waterlogging tolerance ability of C. capsularis than the C. olitorius (Fig. 5B).

In case of C. capsularis salt-sensitive variety, CcPLDα1-2, CcPLDα1-3, CcPLDα2, CcPLDβ1, CcPLDδ2 were highly unregulated and CcPLDα1-1, CcPLDα4, CcPLDγ1, CcPLDδ1 were downregulated under salt stress condition compared to the control in root (Fig. 5C). Three PLD genes (CoPLDα2, CoPLDβ1, and CoPLD-ζ1) were upregulated in root sample of C. olitorius. In addition, CoPLDα1-1 was found highly downregulated in root samples in the same jute species. However, expression of PLD genes in salt stressed leaves was not comparable compare to the root sample. Expression pattern of PLD genes in salt-tolerant C. olitorius jute was also analyzed. Comparative higher and upregulated expression of PLD genes was observed in in root than the samples of leaves (Fig. 5C right panel).

Expression analysis of PLD genes under drought condition revealed that PLDα1-1, PLDα1-3, and PLD-ζ1 was down regulated in C. olitorius, whereas highly upregulated in C. capsularis compared to the control condition (Fig. 5D). On the other hand, PLDβ1, PLDγ1, and PLDδ1 showed upregulated expression in C. olitorius; however, comparatively lower and downregulated expression in C. capsularis. PLDα1-2 showed higher downregulation in both jute species under the same stress condition. Form the above result, it can be predicted that not all but some of the PLD genes might play an important role during drought stress condition.


Plant evolves a number of mechanisms to protect themselves against various environmental stresses for their survival. Phospholipase D (PLD) is a member of phospholipase superfamily which is involved to protect plants from external stresses [37]. PLD gene family of plant play an important role during various stresses such as cold, drought, and salt conditions as well as involved in programmed cell death [16]. However, the member of plant PLDs are more complex than the other organism containing different types of enzymes with noticeable structural, biochemical and regulatory properties.

Number of PLD genes in different plants are not consistent as various reports showed the variation of PLD gene member in different plants [38,39,40,41,42]. Member of PLD gene family has a unique feature of having two HKD (HxKxxxxD) domains far away from each other, however, interact with each other for promoting lipase activity [12]. In this study, a total of 12 and 11 PLD genes were identified from two jute species C. capsularis and C. olitorius, respectively, through the bioinformatic analysis (Table 1). The amino acid analysis identified the conservation of two HKD domains in all jute PLD genes except CoPLDδ2 (Fig. 1). In addition, C. capsularis genome contained two PLD proteins having zeta isoform (CcPLDζ1 and CcPLDζ2), whereas C. olitorius genome contains single protein with zeta isoforms (CoPLDζ1) (Table 1). Sequence alignment found high sequence similarity between CcPLDζ1 and CoPLDζ1 (Data not shown); however, CcPLDζ2 sequence showed insertion of partial amino acid resulting in more protein length than the CcPLDζ1 and CoPLDζ1 (Table 1).

Phylogenetic analysis is one of the amino acid sequence analyses which help to understand not only the relationship of the proteins but also help to predict their evolutionary history [43]. It was also reported that protein functions can be interpreted through the phylogenetic tree and a novel method is required for the genome level understanding [44]. The phylogenetic analysis found four clades for CcPLD and CoPLD proteins along with the Arabidopsis PLD proteins (Fig. 3). Based on sequence similarity, similar results were also reported from the previous studies on rice and Arabidopsis, suggesting the evolution of PLD proteins in different species [45]. It is very likely that PLD proteins in similar clade may have the similar functions and similar prediction was reported in Solea senegalensis proteins involved in immune system [46]. In addition, PLDζ proteins of both jute species along with Arabidopsis were found far away from the rest clades in the evolutionary distance indicating their similar evolution with the same function of PLDζ proteins with Arabidopsis [47].

PLD genes are abundant in plant species and significantly involved in salt tolerance [48]. PLDα1 has been previously reported to be highly expressed in different plant organs such as root, stem, leaf, hypocotyl, petal, anther, and fiber in canola [7]. In addition, PLDδ has been reported to play important role in freezing and salt tolerance as well as involved in stomatal closure [49,50,51,52]. In silico study on publicly available data, seedling, and stem tissues were more favored for the expression of PLD genes rather than leaf, fiber, flower, and fruit, indicating their involvement in the xylem formation [27, 34, 35]. Tissue-specific expression pattern of CcPLDα1-1, CoPLDα1-1, CcPLDα1-3, and CoPLDβ1 showed the importance of PLD genes in jute (Fig. 5A). In addition, CcPLDα1-1, CcPLD-α4, and CcPLDγ1 highly upregulated under waterlogging condition (Fig. 5B) which may have an effect on better survivability at excess water conditions. Similarly, several other PLD genes specially CcPLDα1-1, CcPLDα1-2 CcPLDα2, and CcPLDδ2 were upregulated in C. capsularis than the C. olitorius under salt and drought stress condition, indicating their important role of PLD genes in C. capsularis abiotic stress tolerance. Similar hypothesis was also found from one research where C. capsularis was suggested to be more abiotic tolerance than the C. olitorius [53].


In this in silico study, we provided genome-wide identification and analysis of phospholipase D proteins for the first time in natural phloem fiber producing plant jute. A total of 12 and 11 PLD genes were identified from C. capsularis and C. olitorius, respectively. Gene structure and phylogenetic analysis showed that jute PLD genes were divided in five groups (α, β, γ, δ, and ζ). Moreover, the position of PLD proteins in the phylogenetic tree suggests a close evolutionary relationship between two jute species. Expression analysis revealed at least five PLD genes (PLDα1-2, PLD-α2, PLDβ1, PLDγ1, and PLDδ1) from both jute species have a significant role in jute growth and development. In addition, the expression pattern of PLDα1-2, PLDα1-3, PLD-α4, PLDδ1, and PLDδ3 suggesting their involvement during waterlogging stress condition. Moreover, only three genes (PLD-α2, PLDβ1, and PLDδ2) seemed to play an important role against drought and salinity stress conditions. These results give an important understanding for developing abiotic stress-resistant jute variety.

Availability of data and materials

All the protein sequences are available in NCBI data base.



Phospholipase D


Nitric oxide


National Center for Biotechnology Information


Gene Structure Display Server


Basic and Applied Research on Jute Project


General feature format


Molecular Evolutionary Genetics Analysis


Complementary DNA


Deoxyribonucleic acid


  1. Wan S, Li M, Ma F, Liu Z, Zheng W, Zhan J (2019) Genome-wide identification of phospholipase D (PLD) gene family and their responses to low-temperature stress in peach. AIP Conference Proceedings 2110:020011

    Article  Google Scholar

  2. Simontacchi M, Galatro A, Ramos-Artuso F, Santa-Maria GE (2015) Plant survival in a changing environment: the role of nitric oxide in plant responses to abiotic stress. Front Plant Sci 6:977

    Article  Google Scholar

  3. Bargmann BOR, Munnik T (2006) The role of phospholipase D in plant stress responses. Curr Opin Plant Biol 9:515–522

    Article  Google Scholar

  4. Meijer HJ, Munnik T (2003) Phospholipid-based signaling in plants. Annu Rev Plant Biol 54:265–306

    Article  Google Scholar

  5. Jacobs AC, Hood I, Boyd KL, Olson PD, Morrison JM, Carson S, Sayood K, Iwen PC, Skaar EP, Dunman PM (2010) Inactivation of phospholipase D diminishes Acinetobacter baumannii pathogenesis. Infect Immun 78:1952–1962

    Article  Google Scholar

  6. Morris AJ, Engebrecht J, Frohman MA (1996) Structure and regulation of phospholipase D. Trends Pharmacol Sci 17:182–185

    Article  Google Scholar

  7. Tang K, Dong C, Liu J (2016) Genome-wide analysis and expression profiling of the phospholipase D gene family in Gossypium arboretum. Sci China Life Sci 59:130–141

    Article  Google Scholar

  8. Munnik T, Irvine RF, Musgrave A (1998) Phospholipid signaling in plants. Biochim Biophys Acta 1389:222–272

    Article  Google Scholar

  9. Qin C, Wang X (2002) The Arabidopsis phospholipase D family characterization of a calcium-independent and phosphatidylcholine-selective PLDζ1 with distinct regulatory domains. Plant Physiol 128:1057–1068

    Article  Google Scholar

  10. Li G, Lin F, Xue HW (2007) Genome-wide analysis of the phospholipase D family in Oryza sativa and functional characterization of PLDβ1 in seed germination. Cell Res 17:881–894

    Article  Google Scholar

  11. Uesugi Y, Arima J, Iwabuchi M, Hatanaka T (2007) Sensor of phospholipids in Streptomyces phospholipase D. FEBS J 274:2672–2681

    Article  Google Scholar

  12. Wang X (2002) Phospholipase D in hormonal and stress signaling. Curr Opin Plant Biol 5:408–414

    Article  Google Scholar

  13. Wang X (2005) Regulatory functions of phospholipase D and phosphatidic acid in plant growth, development, and stress responses. Plant Physiol 139:566–573

    Article  Google Scholar

  14. Sang Y, Zheng S, Li W, Huang B, Wang X (2001) Regulation of plant water loss by manipulating the expression of phospholipase Dα. Plant J 28:135–144

    Article  Google Scholar

  15. Wang C, Zien CA, Afitlhile M, Welti R, Hildebrand DF, Wang X (2000) Involvement of phospholipase D in wound-induced accumulation of jasmonic acid in Arabidopsis. Plant Cell 12:2237–2246

    Article  Google Scholar

  16. Bargmann BOR, Laxalt AM, Ter RB, Schouten E, Van LW, Dekker HL, De Koster CG, Haring MA, Munnik T (2006) Le PLDβ1 activation and relocalization in suspension-cultured tomato cells treated with xylanse. The Plant J 45:258–268

    Article  Google Scholar

  17. Wang X, Xu L, Zheng L (1994) Cloning and expression of phosphatidylcholine-hydrolyzing phospholipase D from Ricinus communis L. J Biol Chem 269:20312–20317

    Article  Google Scholar

  18. Tareq MZ, Bashar KK, Amin MR, Sarker MDH, Moniruzzaman M, Sarker MSA, Islam MS (2019) Nutritional composition of some jute genotypes as vegetables. Intl J Vege Sci 26:1–10

    Google Scholar

  19. Islam MM (2019) Varietal advances of jute, kenaf and mesta crops in Bangladesh. Intl J Bioorganic Chem 4:24–41

    Article  Google Scholar

  20. Rafiq MZA, Sadat MA, Hoque ABMZ, Hasan MM, Rahman ML, Tareq MZ (2020) Assessment of deshi jute (Corchorus capsularis) seed quality as affected by storage periods. Intl J Bus Soc Sci Rep 8:83–87

    Google Scholar

  21. Mollah MSA (2010) Report on the cost of production of jute crop 2008–09. Updating and extension of agriculture cluster plots and survey of cost of production project (UCPSCP). Planning Division, Ministry of Planning pp. 9–10

  22. Zakaria A, Sayed AN (2008) Jute microbiological and biochemical research. Plant Tissue Cul Biotech 18:197–220

    Google Scholar

  23. Islam MT, Begum MB, Islam MO (2011) Screening of Jute mutants for salinity tolerance. Intl J Sust Crop Prod 6:6–11

    Google Scholar

  24. Sadat MA, Ullah MW, Bashar KK, Hossen QMM, Tareq MZ, Islam MS (2021) Genome-wide identification of F-box proteins in Macrophomina phaseolina and comparison with other fungus. J Genet Eng Biotechnol 19:46

    Article  Google Scholar

  25. Dhar P, Ojha D, Kar CS, Mitra J (2018) Differential response of tossa jute (Corchorus olitorius) submitted to water deficit stress. Indust Crops Products 112:141–150

    Article  Google Scholar

  26. Ghorai AK, Bhattacharjee AK, Saha S, Rao PV, Bandopadhyay AK (2005) Impact of waterlogging on yield and quality of tossa jute (Corchorus olitorius). Ind J Agron 50(4):320–323

    Google Scholar

  27. Yang Z, Dai Z, Lu R, Wu B, Tang Q, Xu Y, Cheng C, Su J (2017) Transcriptome analysis of two species of jute in response to polyethylene glycol (PEG)- induced drought stress. Sci Rep 7:16565

    Article  Google Scholar

  28. Islam MS, Saito JA, Emdad EM, Ahmed B, Islam MM, Halim A, Hossen QM, Hossain MZ, Ahmed R, Hossain MS, Kabir SM, Khan MS, Khan MM, Hasan R, Aktar N, Honi U, Islam R, Rashid MM, Wan X, Hou S, Haque T, Azam MS, Moosa MM, Elias SM, Hasan AM, Mahmood N, Shafiuddin M, Shahid S, Shommu NS, Jahan S, Roy S, Chowdhury A, Akhand AI, Nisho GM, Uddin KS, Rabeya T, Hoque SM, Snigdha A, Mortoza S, Matin SA, Islam MK, Lashkar MZ, Zaman M, Yuryev A, Uddin MK, Rahman MS, Haque MS, Alam MM, Khan H, Alam M (2017) Comparative genomics of two jute species and insight into fibre biogenesis. Nature Plants 3:16223

    Article  Google Scholar

  29. Horton P, Park KJ, Obayashi T, Fujita N, Harada H, Adams-Collier CJ (2007) WoLF PSORT: protein localization predictor. Nucleic Acids Res 35(2):1–3

    Google Scholar

  30. Diedhiou CJ, Popova OV, Dietz KJ, Golldack D (2008) The SNF1-type serine-threonine protein kinase SAPK4 regulates stress-responsive gene expression in rice. BMC Plant Biol 8:49

    Article  Google Scholar

  31. Gasteiger E, Hoogland C, Gattiker A, Wilkins MR, Appel RD, Bairoch A (2010). Protein identification and analysis tools on the ExPASy server: Walker, JM, The Proteomics Protocols Handbook Humana Press Inc, Totowa. 571-607.

    Google Scholar

  32. Saitou N, Nei M (1987) The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol 4:406–425

    Google Scholar

  33. Kumar S, Stecher G, Li M, Knyaz C, Tamura K (2018) MEGA X: molecular evolutionary genetics analysis across computing platforms. Mol Biol Evol 35:1547–1549

    Article  Google Scholar

  34. Yang Z, Lu R, Dai Z, Yan A, Tang Q, Cheng C, Xu Y, Yang W, Su J (2017) Salt-stress response mechanisms using de novo transcriptome sequencing of salt-tolerant and sensitive Corchorus spp genotypes. Genes 8:226

    Article  Google Scholar

  35. Yang Z, Yan A, Lu R, Dai Z, Tang Q, Cheng C, Xu Y, Su J (2017c) De novo transcriptome sequencing of two cultivated jute species under salinity stress. PLoS One 12:e0185863

    Article  Google Scholar

  36. Kabir SMT, Hossain MS, Bashar KK, Honi U, Ahmed B, Emdad EM, Alam MM, Haque MS, Islam MS (2021) Genome-wide identification and expression profiling of AP2/ERF subfamily under stress conditions in dark jute (Corchorus olitorius L.). Indust Crops. Prod 166:113469

    Google Scholar

  37. Kanchan M, Ramkumar TR, Himani SJK (2021) Genome-wide characterization and expression profiling of the Phospholipase C (PLC) gene family in three orchids of economic importance. J Genet Eng Biotechnol 19:124

    Article  Google Scholar

  38. Elias M, Potocky M, Cvrckova F, Zarsky V (2002) Molecular diversity of phospholipase D in angiosperms. BMC Genomics 3:2

    Article  Google Scholar

  39. Liu Q, Zhang C, Yang Y, Hu X (2010) Genome-wide and molecular evolution analyses of the phospholipase D gene family in poplar and grape. BMC Plant Biol 10:117

    Article  Google Scholar

  40. Zhao J, Zhou D, Zhang Q, Zhang W (2012) Genomic analysis of phospholipase D family and characterization of GmPLDalphas in soybean (Glycine max). Plant Res 125:569–578

    Article  Google Scholar

  41. Tang K, Dong C, Liu J (2016) Genome-wide comparative analysis of the phospholipase D gene families among allotetraploid cotton and its diploid progenitors. PLoS One 11:e0156281

    Article  Google Scholar

  42. Lu S, Fadlalla T, Tang S, Li L, Ali O, Li Q, Guo L (2019) Genome-wide analysis of phospholipase D gene family and profiling of phospholipids under abiotic stresses in Brassica napus. Plant Cell Physiol 60:1556–1566

    Article  Google Scholar

  43. Uncu AO, Uncu AT, Celik I, Doganlar S, Frary A (2015) A primer to molecular phylogenetic analysis in plants. Critical Rev Plant Sci 34:454–468

    Article  Google Scholar

  44. Nagy LG, Merenyi Z, Hegedus B, Baliant B (2020) Novel phylogenetic methods are needed for understanding gene function in the era of mega-scale genome sequencing. Nucleic Acid Res 48:2209–2219

    Article  Google Scholar

  45. Hong K, Zhang L, Zhan R, Huang B, Song K, Jia Z (2017) Identification and characterization of phospholipase D genes putatively involved in internal browning of pineapple during postharvest storage. Front Plant Sci 8:913

    Article  Google Scholar

  46. Garcia-Angulo A, Merlo MA, Rodriguez ME, Portela-Bens S, Liehr T, Rebordinos L (2019) Genome and phylogenetic analysis of genes involved in the immune system of Solea senegalensis- potential application in aquaculture. Front Genet 10:529

    Article  Google Scholar

  47. Ahmed B, Alam M, Hasan F, Emdad EM, Islam S, Rahman N (2020) Jute CDPK genes and their role in stress tolerance and fiber development: a genome-wide bioinformatic investigation of Corchorus capsularis and Corchorus olitorius. Plant Gene 24:100252

    Article  Google Scholar

  48. Singh M, Nara U, Kumar A, Choudhary A, Singh H, Thapa S (2021) Salinity tolerance mechanisms and their breeding implications. J Genet Eng Biotechnol 19:173

    Article  Google Scholar

  49. Li W, Li M, Zhang W, Welti R, Wang X (2004) The plasma membrane-bound phospholipase Ddelta enhances freezing tolerance in Arabidopsis thaliana. Nat Biotechnol 22:427–433

    Article  Google Scholar

  50. Li W, Wang R, Li M, Li L, Wang C, Welti R, Wang X (2008) Differential degradation of extraplastidic and plastidic lipid during freezing and post-freezing recovery in Arabidopsis thaliana. J Biol Chem 283:461–468

    Article  Google Scholar

  51. Gayatri G, Agurla S, Raghavendra AS (2013) Nitric oxide in guard cells as an important secondary messenger during stomatal closure. Front Plant Sci 4:425

    Article  Google Scholar

  52. Angelini J, Vosolsobe S, Skupa P, Ho AYY, Bellinvia E, Valentova O, Marc J (2018) Phospholipase Ddelta assists to cortical microtubule recovery after salt stress. Protoplasma 255:1195–1204

    Article  Google Scholar

  53. Roy A, Bandyopadhyay A, Mahapatra AK, Ghosh SK, Singh NK, Bansal KC, Koundal KR, Mohapatra T (2006) Evaluation of genetic diversity in jute (Corchorus spp) using STMS, ISSR and RAPD markers. Plant Breed 125:292–297

    Article  Google Scholar

Download references


Authors are thankful to Basic and Applied Research on Jute Project, Bangladesh Jute Research Institute for pursuing research activities.
